CONTEST TAPEDRIVER-16POW
Reference : H11769

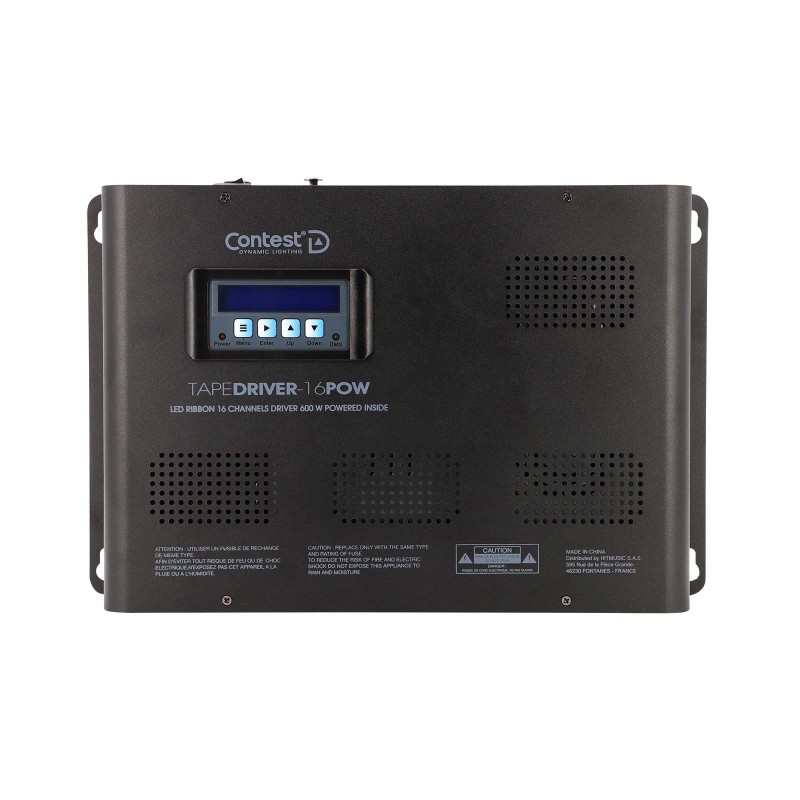

The TAPEDRIVER-16POW is a powerful and versatile 16-channel LED driver. With its 24 V / 600 W power supply, it handles up to 200 W of LEDs per output (600 W spread over 4 outputs). It can be used stand-alone with integrated programs or in DMX512, and also offers RDM compatibility for configuring the device directly from a console. Equipped with an LCD screen and USB-A port, it can be fitted with a Briteq WTR-DMX dongle for wireless DMX connection.
€399.00
€379.05
- The TAPEDRIVER-16POW is a 16-channel LED driver with a 24V 600W power supply for managing up to 200W of LED power at constant voltage per output (the 600W will be distributed over the 4 outputs).
- The TAPEDRIVER-16POW can be used as a stand-alone device thanks to its internal programs or in DMX512 mode.
- The RDM function allows you to modify the main parameters of the device from a compatible console (DMX address, mode, etc.).
- The device menu is navigated via an LCD screen.
- It has a USB A port for connecting a Briteq® WTR-DMX DONGLE for wireless DMX connection.
- Electrical specifications :
- Input voltage: 100~240 V AC 50-60 Hz.
- Input current : 6 A at 240V.
- Output voltage : 4 × 24 V DC per output.
- Output current : 16 x 2 A per output (25 A max.).
- Output power : 4 x 200 W RGBW – 600 W max.
- Output type : DC voltage.
- Special features :
- Available PWM frequencies : 1.3 / 2 / 4 / 8 kHz.
- Output dimming : Gamma from 0.1 to 9.9.
- Encoding modes : 4, 6, 8, 12, 16 or 24 channels.
- Protections : overtemperature, overload and short-circuit, automatic reset.
- Operating environment :
- Ambient temperature : -10 °C to +45 °C.
- IP rating: IP20.
| Weight | 3 kg |
|---|---|
| Sizes | 32.5 x 21.6 x 60 cm |
| Protocol | DMX, Wireless DMX |
| DMX channels | 4, 6, 8, 12, 16, 24 |
| Brand | CONTEST |
| Reference | H11769 |
| ean13 | 3662009028446 |
