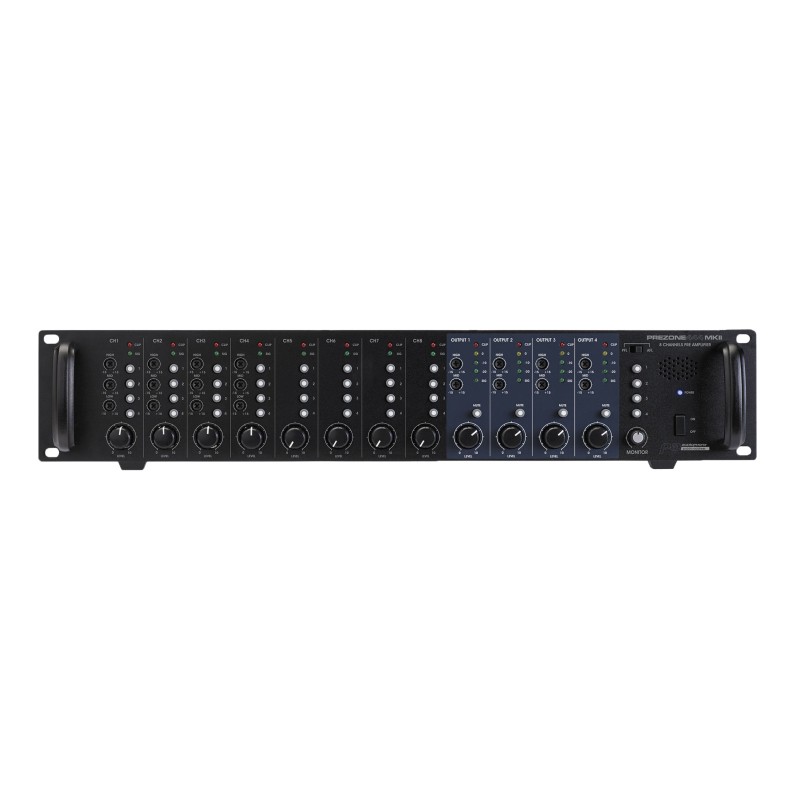

AUDIOPHONY PA PREZONE444 MKII

• Each input can be routed to the zone of your choice.
• Compatible with WP-1 wall controller.
• Compatible with MIC-DESK4 4-zone console.

Technical specifications

• 4 balanced Mic/Line inputs on XLR and Jack 6.35 (TRS).
• 4 stereo inputs on RCA or Mono on 6.35 jack.
• 4 balanced link out per zone on Phoenix plug.
• Priority microphone on input 1.
• Phantom power supply for inputs 1 to 4.
• Gain and tone control (3 bands) on channels 1 to 4.
• Gain adjustment on all inputs.
• Tone control (2 bands) per zone.
• RJ45 connector for WP-1 wall controller (remote input) and MIC-DESK desk (remote mic) on each zone.
• Mute contact possible on each output.
• Zone assignment 1 to 4 on each input channel.
• Signal and Peak display on each input channel.
• Output level display per zone via 5 LED meter.
• Headphone output with volume control (zones and PFL).
• Front monitor speaker.
• Access to settings dedicated to the installer (via screwdriver).
• Power supply: AC 100~240 V / 50~60 Hz or +24V DC.
• Power consumption: 17 Watts.
• DC24 V emergency power supply with Link Out.
• Frequency response: 20 Hz – 20 kHz (- 1 dB).
• T.H.D (1 kHz nominal power) : < 0,1%.
• Equalizer:
  • High: +/-15 dB @ 12 kHz.
  • Mid: +/-15 dB @ 2.5 kHz.
  • Low +/- 15 dB @ 80 Hz.
• Dimensions: 320 x 88 x 482 mm.
• 19 inch rackable.
• Height: 2 units.
